Prototyping

Power Supplies

1. •Your new DC regulated power source provides accurate and stable DC power. It is ideal for test benches, laboratories, schools and repair facilities. The multi-turn voltage control knob helps the user accurately dial in a precise voltage. The large easy to read LCD accurately displays the voltage and current outputs. This product is expertly manufactured for MPJA, Inc. and incorporates SMT PC boards and a built in cooling fan for reliable performance and long life.


2. •


3. •Features:


4. •SMD adhesive sheet element technology for internal PCB construction


5. • Attractive large yellow liquid crystal display for voltage and current


6. •Built in cooling fan for long life *Multiloop high precision voltage regulation


7. •Progressive current regulation


8. •Dual terminal system. Safety test style or expandable screw terminals


9. •Overload protection circuit


10. •Low ripple voltage: <1mV P-P *Isolated floating Output


11. •Metal frame construction

MPJA 9333 Dual Output

1. •0-32V x2, 0-6V x1


2. •0-2A x2, 0-5A x1


3. •Digitized Programmable Interface, High Resolution 10mV 1mA


4. •192 * 128 LCD Display, Display Several Setting and Measuring Result Simultaneously (Variable Display Mode)


5. •Intelligent Windows Operating Interface


6. •Support Several Directly Buttons


7. •Provided Auto Series and Parallel Function


8. •High Stability, Low Drift


9. •Over-Voltage, Over-Current, Over-Temperature Protectionli>


10. •Intelligent Fan Control (Change by Output Power)


11. •Built-in Buzzer Alarm


12. •100 Sets Memory for Setting Save, Auto Running


13. •Interface (Standard) RS-232


14. •Interface (Option) GPIB (IEEE 488.2)

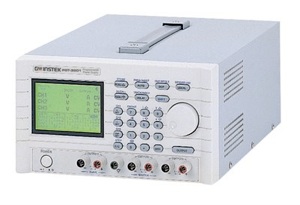

Instek programmable power supply PST-3202

1. •Constant voltage/constant current


2. •Built-in RS232 and RS485 interface


3. •An embedded microprocessor controller


4. •Digital encoder knob


5. •Software calibration


6. •Last setting memory


7. •Parallel operation (Master/Slave) active current sharing


8. •External voltage or resistance programming


9. •Voltage up to 120V, current up to 132A


10. •Active power factor correction: 99%


11. •85~265VAC universal input voltage


12. •19" rack mounted ATE and OEM


13. •Worldwide safety agency approvals


14. •CD Mark for LVD and EMC Regulations


For more information view the DataSheet here .

Lambda high current power supply ZUP6-66/U

1. •90 W, Single Output, 3-1/2 digit Display


2. •0 to 30 V, 0 to 3 A (PS281)


3. •0 to 18 V, 0 to 5 A (PS282)


4. •Variable Current Limiting


5. •Overload and Over-voltage Protection


1. •The PS281/282 DC Power Supplies meet the requirements of laboratory, classroom and production environments.


PS282 Single Output 18 V/5 A Power Supply
Includes: Operator's Manual, 3 Pairs of Test Leads, US Power Cord, One Year Warranty.

Tektronix PS280

Coolrunner II starter kit

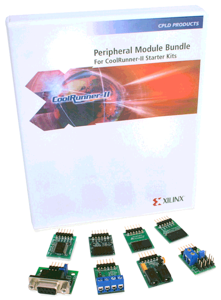

Coolrunner II Peripheral Bundle

The Peripheral Module Bundle includes eight different Pmods that have been specifically selected to add useful features to the CoolRunner™-II Starter Kit.

The peripheral module bundle contains the following modules:

1. •PMod-AD1 (8-bit, 1 MSa/s analog to digital converter, 2 channels)


2. •PMod-DA2 (12-bit, 1 Msa/s digital to analog converter, 2 channels)


3. •PMod-HB3 (H-bridge amplifier for DC motor drive, 12V, 2A)


4. •PMod-CON3 (Connector module for driving up to four servo motors)


5. •PMod-AMP1 (1W stereo amplifier module)


6. •PMod-SF (16-Mbit serial Flash module)


7. •PMod-OC1 (Open Collector peripheral module)


8. •PMod-RS232 (RS-232 serial port module)


Key Features

1. •1 MSa/s A/D and D/A converters


2. •H-bridge amplifier that can drive DC motors with up to 2A


3. •Connector interface board that can drive up to four servo motors


4. •16 Mbit serial flash device


5. •Open-collector driver that can drive up to 200 mA loads


6. •RS-232 serial port


7. •EU-RoHS compliant.

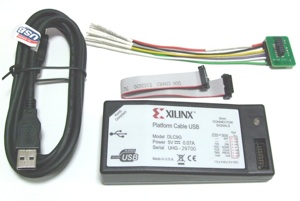

Xilinx USB platform cable DLC9

View DataSheet Here

Electronic Components:

1. •Resistors


2. •  Capacitors


3. •  Diodes


4. •  Transistors


5. •  Op Amps


6. •  CPLDs


7. •  Linear voltage regulators


8. •  Optocouplers


9. •  Oscillators


10. •  Triacs


11. •  Sockets


12. •  Connectors


13. •  Wire

1. •Constant voltage/constant current


2. •Built-in RS232 and RS485 interface


3. •An embedded microprocessor controller


4. •Digital encoder knob


5. •Software calibration


6. •Last setting memory


7. •Parallel operation (Master/Slave) active current sharing


8. •External voltage or resistance programming


9. •Voltage up to 120V, current up to 132A


10. •Active power factor correction: 99%


11. •85~265VAC universal input voltage


12. •19" rack mounted ATE and OEM


13. •Worldwide safety agency approvals


14. •CD Mark for LVD and EMC Regulations


For more information view the DataSheet here .

Lambda high current power supply ZUP6-132/U

MPJA 9333 Dual Output

CPLDs

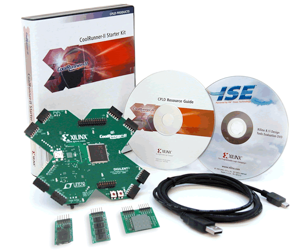

The CoolRunner™-II Starter Kit is an ideal platform to evaluate and implement your CPLD designs quickly. A unique development board with eight peripheral connectors, allow you to select from a variety of peripheral expansion modules (sold separately) to expand the capabilities of your design.

1. •What's Included


2. •X-Board with XC2C256-TQ144


3. •Resource CD, including reference manual, software, application notes, web seminars, and data sheets


4. •USB Cable


5. •ISE® WebPACK™ CD


6. •PMod-PS2 (PS2 module to connect keyboard or other PS2 device to X-Board)


7. •PMod-SSD (Seven Segment Display module)


8. •PMod-SWITCH (Switch module to provide interface to 4 slide switches)


9. •Key Features


10. •XC2C256 CoolRunner-II in TQ144 package


11. •USB Interface


12. •Eight 6-pin connectors for standard peripheral modules


13. •One 26-pin and one 16-pin connector for daughter boards


14. •Built-in temperature and power monitor


15. •Free Reference Designs

Xilinx USB platform cable II DLC10

View DataSheet Here

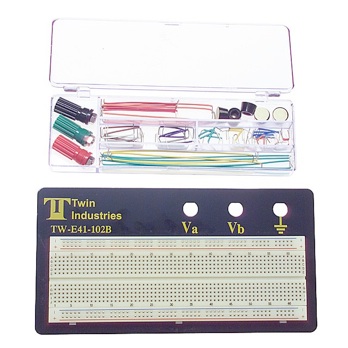

1. •Solderless breadboards
