• 250 ps resolution (4 GHz) timing zoom to find elusive timing problems quickly, without double probing.

• 15” display, with available touch screen, allows you to see more data and navigate quickly.

• View Scope – time-correlated measurements and displays of your logic analyzer and oscilloscope data let you effectively track down problems across the analog and digital portions of your design.

• Eight models with 34/68/102/136/204 channels, up to 32M memory depth and models with a pattern generator provide the measurement flexibility for any budget.

• Application support for every aspect of today’s complex designs – FPGA dynamic probe, digital VSA (vector signal analysis) and broad processor and bus support.

Logic Analyzers

Agilent 16822A

Agilent 1670G

1. •Deep memory options let you capture more data and save you from having to set up complex triggers. The integrated oscilloscope option lets you view analog and digital signals simultaneously. The integrated pattern generator option lets you stimulate a device under test while you capture its response with the logic analyzer.


1. •136 channel portable logic analyzer


1. •500 MHz timing speed


1. •150 MHz state speed


1. •Memory: 64 K standard, 256 K or 2 M optional


1. •Optional 2-channel oscilloscope or 32 channel pattern generator

Flying leads set

1. •Acquire signals from randomly located points in your target


1. •Variety of supplied accessories allows connections to various components on your target including traces, pads, and vias


1. •Acquire signals from randomly located points in your target


1. •17 channels, differential or single-ended clock and data


1. •Extremely low, 0.9pf, equivalent load capacitance


1. •Data rates of 1.5Gb/s (maximum rate dependent on analyzer used


1. •200mV Vmax-Vmin minimum signal amplitude


1. •Variety of supplied accessories creates maximum probing flexibility

Oscilloscopes

Tektronix MSO-4104

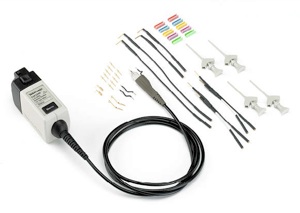

Active 1.5GHz probe TAP1500

1. •Outstanding Electrical Performance


2. •≥1.5 GHz Probe Bandwidth


1. •<267 ps Rise Time


1. •≤1 pF Input Capacitance


1. •1 MΩ Input Resistanc


1. •-8 V to +8 V Input Dynamic Range


1. •-10 V to +10 VDC Input Offset Range


1. •Versatile Mechanical Performance


2. •Small Compact Probe Head for Probing Small Geometry Circuit Elements


1. •DUT Attachment Accessories Enable Connection to SMDs as Small as 0.5 mm Pitch


1. •Robust Design for Reliability


1. •Easy to Use


2. •Connects Directly to DPO7000 and DPO/MSO4000 Series Oscilloscopes Using the TekVPI™ Probe Interface


1. •Provides Automatic Units Scaling and Readout on the Oscilloscope Display


1. •Easy Access to Oscilloscope Probe Menu Display for Probe Status/Diagnostic Information, and to Control Probe DC Offset

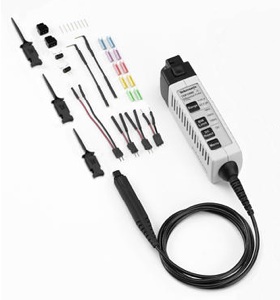

Differential active 1GHz probe TDP1000

1. •1 GHz and 500 MHz Probe Bandwidth


2. •<1 pF Differential Input Capacitance


3. •1 MΩ Differential Input Resistance


4. •±42 V (DC + pk AC) Differential Input Voltage


5. •> 18 dB CMRR (at 250 MHz 50X Attenuation)


6. •100 Hz, 10 kHz, 1 MHz, and Full Bandwidth Selectable Bandwidth Limiting Filters


7. •Small Compact Probe Head for Probing Small Geometry Circuit Elements


8. •Straight Pin, Square Pin, Solder Down, Variable Pitch Standard Accessories


9. •Connects Directly to the Tek 4000/7000 Oscilloscopes using TekVPI Probe Interface


10. •Provides Automatic Units Scaling and Readout on the Oscilloscope Display


11. •Easy Access to Scope Displayed Probe Menu for Probe Setup Control and Operating Status Information

DMMs

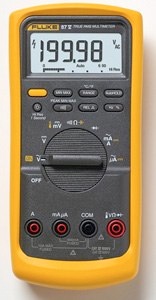

Fluke 87-V

1. •True-rms ac voltage and current for accurate measurements on non linear signals


2. •Selectable filter for accurate voltage and frequency measurements on motor drives


3. •0.05 % dc accuracy


4. •6000 counts, 3-3/4 digits


5. •4-1/2 digit mode for precise measurements (20,000 counts)


6. •Measure up to 1000 V ac and dc


7. •Measure up to 10 A, 20 A for up to 30 seconds


8. •Built in thermometer lets you carry one less tool (TC probe included)


9. •Frequency to 200 kHz and % duty cycle


10. •Resistance, continuity and diode test


11. •10,000 µF capacitance range for components and motor caps


12. •Min/Max-Average recording with Min/Max Alert to capture variations automatically


13. •Peak capture to record transients as fast as 250 µs


14. •Relative mode to remove test lead interference from low ohms measurements


15. •Auto and manual ranging for maximum flexibility


16. •Touch Hold to capture stable readings avoiding noisy signals


17. •Large display digits and two-level bright white backlight for increased visibility


18. •Analog bargraph for fast changing or unstable signals


19. •Input Alert provides audible warning against wrong use of input jacks


20. •Improved selectable sleep mode for long battery life


21. •Access door for fast battery changes without breaking the calibration seal


22. •"Classic" design with new removable holster with built in test lead and probe storage

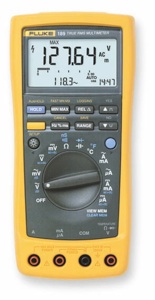

Fluke 189

1. •Extremely fast readings


2. •50,000 counts display


3. •0.025% basic DC accuracy


4. •True RMS AC + DC measurements


5. •100 kHz AC bandwidth for voltage and current


6. •Ergonomic high-impact overmolded case


7. •Dual display with bargraph and two-level backlight


8. •Min/max/average with real time clock and 250 µs Fast Min-Max


9. •Frequency, capacitance, duty cycle & pulse width measurements


10. •Resistance, conductance, continuity and diode measurements


11. •Temperature and dBV/dBm with selectable reference


12. •PC interface for data exchange and closed case calibration


13. •Battery and fuse access without breaking calibration seal


14. •Internal memory allows stand-alone logging of up to 1000 measurements


15. •Readings memory for up to 100 readings

Fluke 289

1. •New diagnostic functionality for maximizing productivity in the plant. The new 289 is the next generation high performance industrial logging multimeter designed to solve complex problems in electronics, plant automation, power distribution, and electro-mechanical equipment. With the ability to log data and review it graphically on-screen, you can solve problems faster and help minimize downtime. Let the new 289 be your watchdog for systems or processes while you are off solving other problems.


1. •Maximize productivity with the combined Fluke 289 and FlukeView forms combo kit. With built-in data logger and TrendCapture capability, the 289 helps you track down elusive, intermittent problems, monitoring equipment with any of its functions while you do other jobs. Overlay your logged data from six meters or six time periods to find cause and effect relationships or for condition monitoring applications in FVF software. Turn your data into meaningful graphs and tables for a professional report. The 289/FVF combo kit gives you a practical & affordable approach to predictive maintenance.

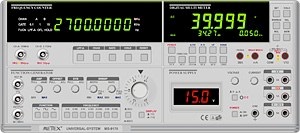

Metex universal test system MS-9170

1. •40,000 count True RMS DMM,


2. •2.7GHz Frequency Counter


3. •10MHz Function Generator


4. •Triple Output Power Supply


5. •True RMS Digital Multimeter: DCV - 5 ranges to 1000V. ACV - 5 ranges to 750VAC. AC/DC current - 4 ranges to 20 Amp. Resistance to 4M, Capacitance 4 ranges to 200uF. Continuity, diode, logic and hFE testing.


6. •DC Power Supply (3-1/2 digit LED display): Triple Output. 0 ~ 30V @ 0 ~ 3A. 5V fixed @ 2A. And 15V fixed @ 1A.


7. •Frequency Counter: Channel A - 1Hz ~ 20MHz. Channel B - 20MHz ~ 2.7GHz. Selectable Time Base - Channel A, B Switch Selectable.


8. •Function Generator: Sine, Square, Triangle, Skewed Sine, Ramp, Pulse, TTL. Frequency - 1Hz ~ 10MHz. Amplitude 2Vpp to 20Vpp open load.


9. •Dimensions: 14.5" W x 6.5" H x 12.5" D. Weight 39 lbs.

1. •1 GHz, 500 MHz, 350 MHz Bandwidth Models


2. •2 or 4 Channel Digital Phosphor Oscilloscopes


3. •16 Digital Channels (MSO4000)


4. •Suite of Advanced Triggers


5. •Sample Rates Up to 5 GS/s on All Channels


6. •10 Mega Sample Record Length on All Channels


7. •35,000 wfm/s Maximum Waveform Capture Rate


8. •Ease of Use Features


9. •Wave Inspector® Controls Provide Unprecedented Efficiency in Waveform Analysis


10. •10.4 in. (264mm) XGA Color Display

1. •Small Footprint and Lightweight - Only 5.4 in. (137mm) deep and 11 lbs. (5 kg)


2. •USB and CompactFlash on Front Panel for Quick and Easy Storage


3. •Plug-and-Play PC Connectivity


4. •Serial Triggering and Analysis


5. •I2C, SPI, CAN and RS-232 Serial Triggering and Analysis Options


6. •Mixed Signal Design and Analysis (MSO4000)


7. •Parallel Bus Display


8. •Logic Triggering


9. •MagniVuT 60.6 ps Technology Provides Finer Timing Resolution


10. •Per Channel Threshold Settings


11. •Multi-channel Setup and Hold Triggering


12. •Next-generation Digital Waveform Display

1. •High-speed Digital Systems Design


2. •Component Design and Characterization


3. •Manufacturing Engineering and Test


4. •Educational Research


5. •Signals with Voltage Swings up to 16 Vp-p


TAP1500 Single-ended Active FET Probe provides excellent high-speed electrical and mechanical performance required for today’s digital system designs. Specifically designed for use and direct connection to the TekVPI™ probe interface used on Tektronix' new DPO7000 and DPO/MSO4000 Series Oscilloscopes, the TAP1500 Active FET probe achieves high-speed signal acquisition and measurement fidelity by solving three traditional problems:

1. •Lower DUT loading effects with ≤1 pF input capacitance and 1 MΩ input resistance


2. •Versatile DUT connectivity for attaching to small SMDs


3. •Preserves oscilloscope bandwidth at the probe tip for DPO7000 and DPO/MSO4000 Series Oscilloscope models, up to 1 GHz
